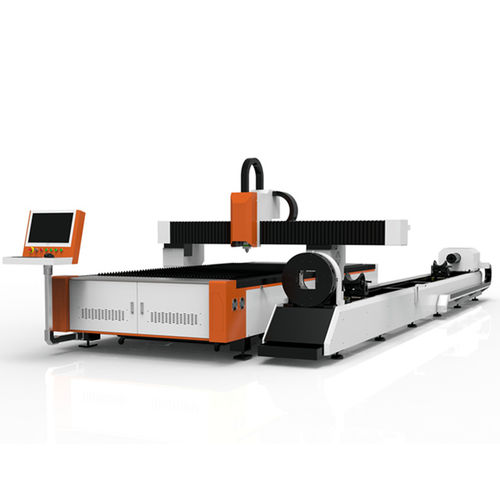

Fiber laser cutting machine E3t/E6t
for metalsheet metalfor thin sheet metal

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for metal
Product handled
sheet metal, for thin sheet metal, for thick sheet metal, tube, for metal pipes, for aluminum profiles, for metal furniture, for door, door frame
Control type
CNC
Associated function
drilling, engraving, marking, multi-function, contour, milling, hole punch, profiling, chamfering, trimming, deburring
Applications
for industrial applications, for metal fabrication, for the automotive industry, for aeronautical applications, for the electronics industry, for medical applications, for the food industry
Other characteristics
high-precision, high-speed, CE, high-performance, for steel construction, for mass production, for structural steel
X travel

2,050 mm
(80.71 in)

Y travel

Min.: 4,050 mm
(159.45 in)

Max.: 6,050 mm
(238.19 in)

6,050 mm
(238.19 in)

Tube diameter

Min.: 20 mm
(1 in)

Max.: 220 mm
(9 in)

Laser power

Min.: 1,500 W

Max.: 6,000 W

Description

Golden Laser has independently developed the E3t E6t series of sheet metal and tube-integrated fiber laser cutting machines for market demand. It is a dual-purpose fiber laser machine that solves the dual cutting requirements of sheet and pipe at one time. Advantages of dual-uses laser cutting machine E3t • One machine for two purposes • No installation required • Affordable but cost-effective ▲ Applicable: • Applicable to cut various sheet metals, mainly stainless steel, carbon steel, manganese steel, copper, aluminum, titanium plates, galvanized sheets, all kinds of alloy plates, rare metals, and other materials. • Sheet metal, jewelry, glasses, machinery and equipment, lighting, kitchenware, mobile, digital products, electronic components, watches and clocks, computer components, instrumentation, precision instruments, metal molds, car parts, craft gifts, and other accuracy-cutting results industries, etc. • Especially for round, square, rectangular, oval, waist round tubes and other metal pipes ▲ Parameters: 1. Model number: E3t E6t 2. Laser power: 1500W to 6kW 3. Tube length: 3000mm or 6000mm 4. Working area: 1500mm * 3000mm 5. Pipe diameter: Φ20 mm ~ 160 mm / □ 20-110mm 6. Laser source: MAX / Raycus fiber laser generator 7. CNC control: FSCUT3000C 8. Laser head: Raytools
