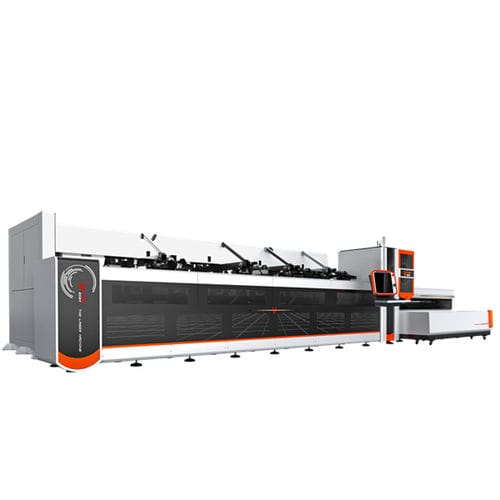

Fiber laser cutting machine P3580A
for metaltubelarge capacity

fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
fiber laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for metal
Product handled
tube
Other characteristics
large capacity
X travel

8,180 mm
(322.05 in)

Y travel

350 mm
(13.78 in)

Tube diameter

Max.: 350 mm
(14 in)

Min.: 20 mm
(1 in)

Laser power

Max.: 6,000 W

Min.: 1,000 W

Repeatability

0.02 mm
(0.0008 in)

Description

Laser tube cutting machine P3580A is upgraded based on the P2060A laser pipe cutting machine. Larger chuck, longer work bed, larger capacity, intelligent laser tube processing model. Flexibility is free to choose: At Golden Laser, you can choose a customized fiber laser cutting machine. According to your tube cutting requirements, you can choose a chuck within the diameter of 120mm, 200mm, 350mm, or other specifications; the worktable size can choose a length of 6m, 7m, 8m, 9m, or longer. Parameters of tube laser cutting machine P3580A: ● Workpiece length: within 8000mm (26.2') ● Tube diameter range: 20 (0.7") -350mm (13.7") Laser power: 1500W 2kw 3kW 4kW 6kW (optional) ● Max rotate speed: 160r/min ● Max acceleration: 1.5g ● XY axis position speed: 120m/min ● Single tube bearing weight: 25kg/m ● Laser source: IPG/ nLIGHT/ Raycus fiber laser generator ● Auto Bundle maximum size and weight: 800mm*800mm*8000mm; 2.5T Applications of pipe laser cutting machine P3580A: ● Round tube, square tube, rectangular tube, oval tube, channel steel, I-beam, slats, etc. ● Stainless steel, carbon steel, aluminum, aluminium, copper, brass, mild steel, inox, iron, etc. ● Steel construction, metal fabrication, metalworking, warehouse solution, metal shelving, automobile parts, automation solution, metal fence and panel, gates and corrals, photovoltaic bracket, fitness equipment, metal furniture, agricultural machinery, stair handrail, communication base station and other industries.
