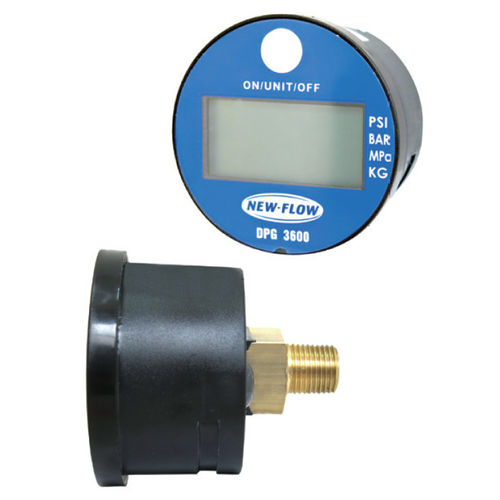

Digital pressure gauge DPG3600brassBourdon tubefor air
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Material
- brass
- Technology
- Bourdon tube
- Applications
- process, for air
- Other characteristics
- battery-powered
- Pressure
Max.: 150 psi
Min.: 0 psi
- Precision
1 %
- Process temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
The New-Flow DPG3600 Digital Pressure Gauge is designed to handle applications which require air pressure measurement under normal or indoor environment. The user-friendly DPG3600 having longer battery life of 1 year typical at sampling rate of 1.2 sec. With a sensor, a display compactly integrated inside with variety of functions such as unit sélection, and auto-off as an option etc, and this gauge can be used for a variety of industrial and commercial applications.
Technical Data
Power Supply: Battery CR2450 (3.0V, 500mAh)
Sampling Rate: 1.2 sec
Battery Life: 1 Year for continuous use
Measure Media: Dry Air
Burst Pressure: 2 x F.S.
Brass Port: 1/8"NPT, 1/4’’NPT or PT Male, option available Weight: approx. 0.1 kg
