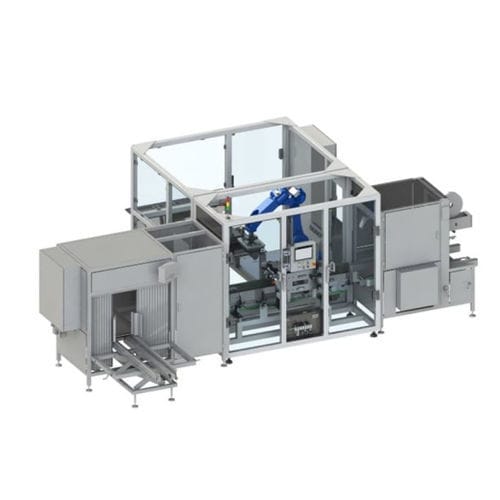

Robotic packaging cell VR-K

loadingcompact

Pack cell Our robot cell type VR-K is perfectly adapted for packing your products and supplements into solid boxes or corrugated cardboard boxes. Flat-lying cartons are taken from a magazine, erected and provided for loading. Inline or via a magazine, the products and supplements are inserted into the box or carton automated. Before the insertion, each component can be checked with a scanner. If there are several products per box, it is possible to pre-group them automated, depending on the packing pattern. Additionally, encoding or labelling can be executed. The box is locked with an attached flap with plug-in closure or separate cover/slipcase, optionally with tamper evident label. Due to the application of a 6-axis robot that accepts all tasks, a very compact and space-saving design is created. Fields of application : • in all industries • primary and secondary packaging • operation as stand-alone solution for the implementation of a complete packaging process • operation integrated inline within production line • for big format variety with short format change time Performance/technical data : • up to 100 solid boxes/min • up to 15 corrugated cardboard boxes • repeatability: 0.1 mm • format change in the minute range • cell size depending on application and product -/box size • flap lock with adhesive tape or hot glue • single or group packaging • various packing patterns and orientations • industry-specific and individually matched gripper systems
