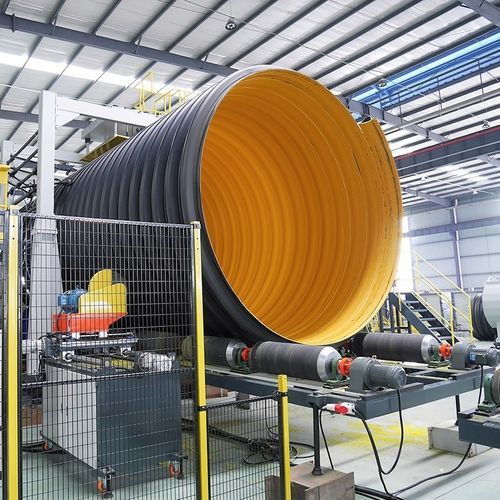

Corrugated pipe machine TL-1200

profilefor thermoplasticsmultilayer

Steel reinforced polyethylene corrugated pipe (SRCP) was developed by Goldstone in 2004 based on existing spiral wound pipe technology. SRCP is a new conception for large diameter composite pipe design and manufacturing. SRCP employs a multilayer wall construction consisting of inner and outer polyethylene layers and an omega-shape steel profile bonded to the two polyethylene layers by an adhesive. Such construction maintains the key properties of polyethylene pipes (low coefficient of friction, chemical resistance, lightweight, etc.) while also benefitting from the structural properties of steel (high stiffness). Compared to plastic pipe, the use of steel in SRCP pipe provides higher resistance to external loads but lower consumption in raw materials. Using the spiral wound pipe processing method combined with steel reinforcing technology, allows large inner diameter SRCP pipe to be produced from 300 mm (12 inch) up to 3000 mm (125 inch) with pipe ring stiffness ranges typically from SN8 (63Psi) to SN16 (158Psi), or even higher. There are now many industry standards for SRCP that have been issued by different countries and organizations including ASTM F 2435-15，CJ_T 225-2011，UNI 11434 ITA，CSA B182.14-15, SII458，etc. Economic The most economical solution for sewage / drainage pipeline, infrastructure and municipal construction Large Diameter The big pipe can reach inner diameter DN 3000 mm. Saving Cost SRCP can save 30%-50% of material cost, compared with the none reinforced large diameter pipe and other kinds of composite pipe. Stronger Offer super pipe ring stiffness from SN8, SN12.5 to SN16, SN20
