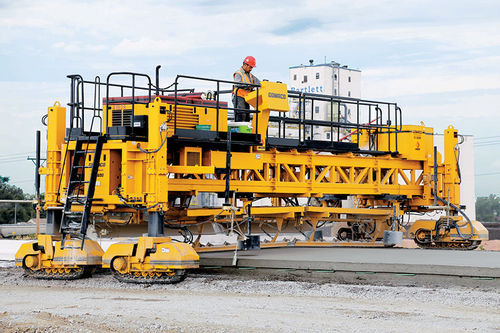

Texture curing machine T/C-5600

The GOMACO T/C-5600 four-track texture/cure machine has the structural integrity to apply texture and cure up to 56 feet (17.1 m) wide. • The T/C-5600 features GOMACO’s exclusive digital G+® control system with forward and reverse steering and grade control. It can be sensored off stringline or other methods from our sensor library. This provides ease of operation and accuracy while texturing and curing. • The patented walking end car allows the T/C-5600 to turn its tracks and walk the end car in or out for additional frame sections to be added or removed. • Tracks turn 90 degrees for easy transport. The T/C-5600 texture/cure machine’s transport height is 10.4 feet (3.17 m) with the exhaust pipe removed. • The spray bar hydraulically folds 90 degrees for transport. • An optional hot water tank on-board the T/C-5600 texture/cure machine can be used to flush out the cure pump and nozzles at the end of each paving day. • Available with the following options: 1.) a texturing assembly for longitudinal tining; 2.) a 10 foot (3.05 m) wide transverse tining assembly; or 3.) the single pass transverse texture/cure option with a seven foot (2.13 m) transverse tining bar and a seven foot (2.13 m) folding spray bar. Once you experience G+ controls, you won’t be satisfied with anything else. It’s a control system that is both easy to learn and easy to operate. G+ expresses itself in easy to understand international icons and full script explanations. It operates in all the major languages of the world and in imperial or metric units. It has a lightning-fast processing speed and features two-way communications between the accessories and G+.
