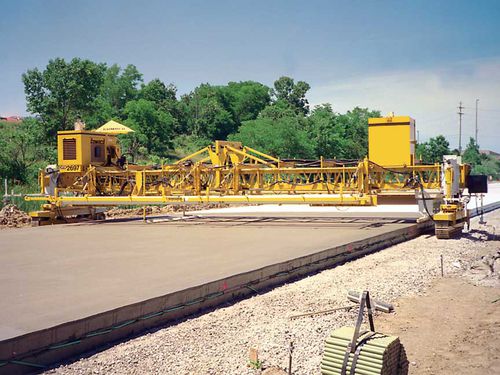

Texture curing machine T/C-600

Versatility is provided with GOMACO’s texturing/curing machines. Versatility with one machine... texturing, curing, poly-roll, and burlap/astroturf drag. • The T/C-600 accomplishes tasks quickly with its optional two-speed tracks, providing a high-range track speed up to 161 feet per minute (49 mpm). This allows the operator to keep up with the paving operation and have time to tend to other responsibilities. The low-range track speed of up to 61 feet per minute (19 mpm) provides tractive effort around and over job-site obstacles and ease in negotiating inclines during loading. • The T/C-600 frame permits width adjustments from 12 feet (3.66 m) to 48 feet (14.63 m), contact the factory for wider width needs. • The T/C-600 is equipped with two hydraulically powered, gear-driven crawler tracks. • A central operator station and power supply provides hydraulic control from one location. • Available with the GOMACO exclusive G+® digital control system. • An optional power transition adjuster (PTA) hydraulically adjusts for crown height and permits on-the-go crown adjustments. • Curing assembly includes a reservoir with hydraulic motor, pump, and controls. The spray bar has nozzles spaced 12 inches (305 mm) apart and adjustable height above the surface of the concrete for even coverage. The optional transverse curing system allows you to simultaneously texture and cure, saving you time and money. • The texturing assembly travels transversely across the width of the concrete slab. Carriage speed is variable, up to 168 feet per minute (51 mpm).
