- GOODRIDGE FLUID TRANSFER SYSTEMS
Water hose 811 seriesfor fuelpneumaticfor oil
Add to favorites
Compare this product
Characteristics
- Use
- for water, for fuel, pneumatic, for oil
- Material
- stainless steel
- Other characteristics
- smooth, anti-static, braided, stainless steel-braided, PTFE inner liner
- Inner diameter
Min.: 6.7 mm
(0.264 in)Max.: 25.4 mm
(1 in)- Outer diameter
Min.: 9.6 mm
(0.378 in)Max.: 32.2 mm
(1.268 in)- Pressure
Min.: 50 bar
(725.189 psi)Max.: 88 bar
(1,276.332 psi)- Temperature
Min.: -70 °C
(-94 °F)Max.: 260 °C
(500 °F)
Description
The G-Line XF 811 is the stainless-steel braided equivalent to the G-Line XF 910.

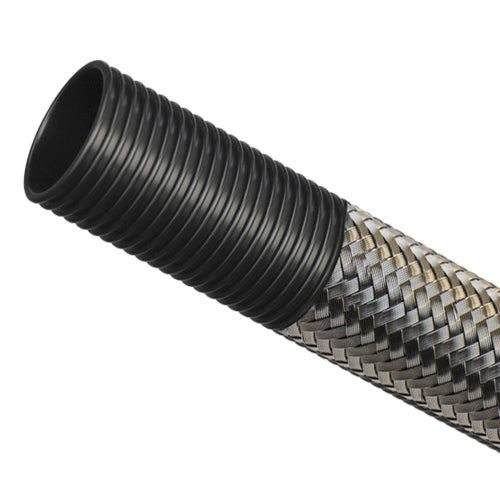

The hose features a smooth bore, externally convoluted, carbon impregnated, anti-static PTFE liner, wrapped in a Stainless Steel braid.
In addition to the 711 crimp and 4000 series crimp/draw swage fittings, the G-Line XF 811 hose can be assembled using 811 reusable fittings, without the need for specialist tooling.
This hose is sold by the metre.
Fluid applications
Fuel, Oil, Water, Methanol & Pneumatics
Compatible fittings
-
711 crimp fittings, 4000 crimp fittings, 811 reusable fittings
