- GOODRIDGE FLUID TRANSFER SYSTEMS
Water hose 910 seriesfor fuelpneumaticfor oil
Add to favorites
Compare this product
Characteristics
- Use
- for water, for fuel, pneumatic, for oil
- Material
- PTFE, aramid
- Other characteristics
- smooth, lightweight, anti-static
- Inner diameter
Max.: 31.7 mm
(1.248 in)Min.: 6.7 mm
(0.264 in)- Outer diameter
Max.: 38.6 mm
(1.52 in)Min.: 9.7 mm
(0.382 in)- Pressure
Max.: 88 bar
(1,276.332 psi)Min.: 45 bar
(652.67 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -40 °C
(-40 °F)
Description

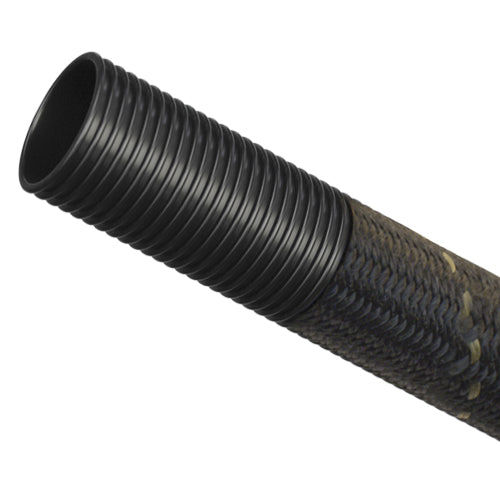

The G-Line XF 910 is the lightest smoothbore hose in the Goodridge range. The hose features a smooth bore, externally convoluted, carbon impregnated, anti-static PTFE liner, wrapped in a super lightweight Aramid fibre braid. In addition to the 711 crimp and 4000 series crimp/draw swage fittings, the G-Line XF 910 hose can be assembled using 811 reusable fittings, without the need for specialist tooling.
This hose is sold by the metre.
Fuel applications
-
Fuel, Oil, Water, Methanol & Pneumatics
Compatible fittings
711 crimp fittings, 4000 crimp fittings, 811 reusable fittings
Catalogs
Goodridge Ltd Full Catalogue
114 Pages
