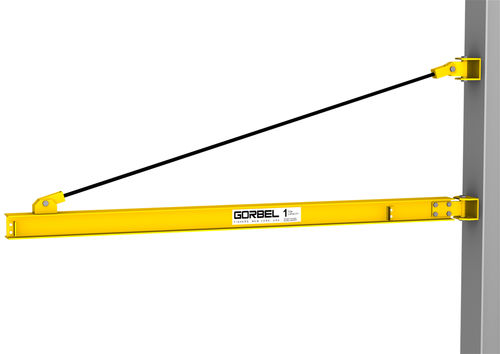

Wall-mounted jib crane WB100

liftingrotaryoverbraced

Wall Bracket Jib Cranes are an economical, heavy duty solution. They contain a single tie rod, right hand threaded at both ends for easy boom adjustment and installation. These tie rod jibs are ideal for swinging around obstacles or under obstructions. Here are some key features of our Wall Bracket Jib Crane: • Low dead weight of the boom combined with bronze bushings and oil-impregnated bronze thrust washers provide for easy rotation and superior load positioning • Formed bracket fittings provide for greater reliability. No welds in tension, all bolts are in double shear for increased strength • Single tie rod, right hand threaded at both ends for easy leveling • All connections bolted, including movable bolted trolley stops • Grease fittings are provided for easy field lubrication Prior to selecting a Wall Bracket Jib Crane for your application, two key requirements must be met. The jib crane needs a structurally adequate wall or column to support it. There must be sufficient clearance above the boom throughout its arc to accommodate the tie rod suspension. Features & Benefits • Most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants • Single tie rod, right hand threaded at both ends for easy boom adjustment and installation
