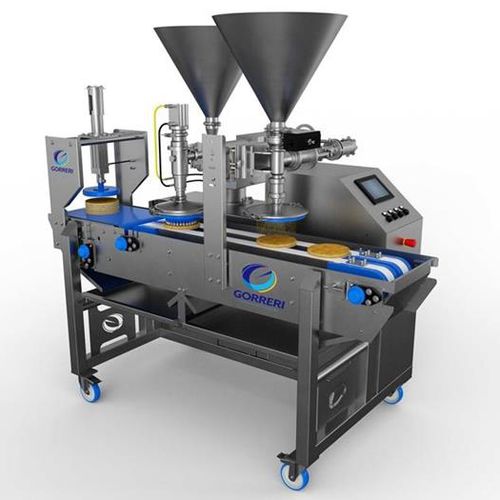

Automatic cake production line MULTIMATIC 300

MULTIMATIC model has been realized with the specific need to offer a multilayer filling group to companies that require flexible productions without waiving the simplicity of the inline filling. This machine is very compact and it is studied for the demand of small and medium productions. BENEFIT • Easy change-over and maximum simplicity for the cleaning of the belt transport and of the dosing heads. TECHNICAL FEATURES: Frame entirely made of stainless steel mounted on nr. 4 pivoting wheels. High quality manufacturing. Syrup deposit by means of volumetric piston with shower terminal tool. Cream deposit using DVG head equipped with electronic system for the control of the depositing height. Cake pressing device for levelling the final height. STANDARD EQUIPMENT • N° 01 shower for syrup. • N° 01 shower for cream. • N° 01 pressing plate. • Large electrical cabinet integrated in the frame and color touch screen control panel for the setting of the productions programs. DIMENSIONS 1950x1450x1900 mm OPTIONALS Second volumetric depositor for the double filling. TECHNICAL DATA Maximum production: 150 cakes/hour (2 layers). Air consumption: 250 Nl/min a 6 bar. Power: 16 A - 400 V AC – 50 Hz. MULTIMATIC machine is also available with the pressing unit in front of the operator (MULTIMATIC FP).
