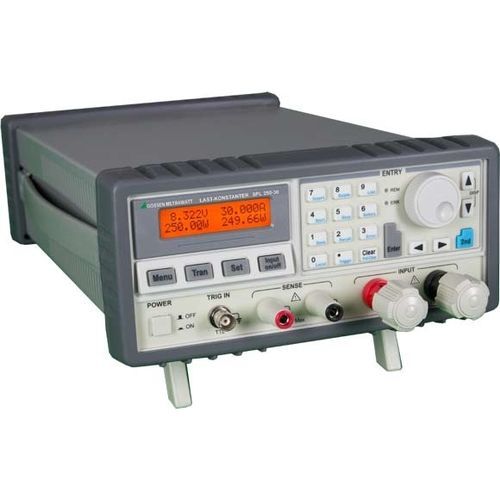

DC electronic load SPL series

programmablemultifunctionRS-232

SPL series electronic loads are high-precision direct current sinks for use in research, product development, production, service and vocational training. Two types are available with 250 up to 400 W input power. The devices are distinguished by a diverse range of functions and excellent regulating accuracy, as well as outstanding ease of operation. - 4 operating modes: constant current, constant voltage, constant load and constant power - High-speed sequence and transient measurement, short-circuit proof, battery discharging and other auxiliary functions - Minimum operating voltage is less than 0.6 V at maximum current load - Programmable current rise and fall time, steep edges - Several groups of parameters (device settings) and sequences (load profile) can be saved and retrieved. - Floating power input / no grounding - Safe electrical separation - Input can be switched on and off - Voltage or current control is possible with constant power - Settings selected by means of a rotary switch and keypad - Multifunctional LCD panel - Safety functions, amongst others adjustable power limiting - Benchtop instrument, also suitable for mounting to a 19" rack
