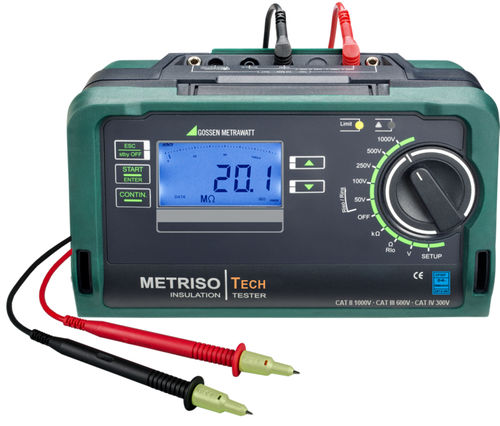

Insulation tester METRISO TECH

low-resistancevoltagecabling

Test Instrument for Insulation, Low-resistance and Voltage Measurements Compact and rugged - for service calls under harsh conditions and laboratory use The METRISO TECH insulation and resistance measuring instruments allow for quick and effective testing of protective measures in accordance with: • DIN VDE 0100 • ÖVE-EN 1 (Austria) • SEV 1000 (Switzerland) • and regulations specific to other countries as well • Insulation measurement per EN 61557-2 / VDE 0413 part 2 • Low-resistance measurement per EN 61557-4 / VDE 0413 part 4 • Voltage testing and measurement up to 1000 V The insulation measuring instruments are suitable for the following tasks: • Measurement of insulation resistance at voltage-free devices and systems, up to 1000 V • Testing of the resistance of earthing conductors, protective conductors and equipotential bonding • Checking of test objects for absence of voltage • Testing of electrostatic discharge capacity at floor coverings (using shielded measurement cables) - EN 1081
