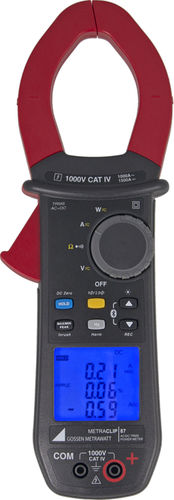

Digital clamp multimeter METRAclip 87

portable1000 V1000 A

The METRAclip 87 clamp multimeter is suitable for the measurement of medium power values in the low-voltage range, and thus offers optimized safety for all types of systems and under any measuring conditions. In addition to applications in the areas of maintenance, troubleshooting and repair, the METRACLIP is also used for measurements in railway systems and low-voltage distribution networks. Clamp opening: 48 mm Current: AC 99,99 / 999,9 A rms bei 10 Hz - 2 kHz DC ±99,99 / ±999,9 / ±1500 A dc AC+DC 99,99 / 999,9 A rms 99,99 / 999,9 / 1500 A peak Inrush current: 10 ..1000 A rms / 1500 A peak Voltage: AC 99,99 / 999,9 V rms bei 10 Hz - 3 kHz DC ±99,99 / ±999,9 V dc AC+DC 99,99 / 999,9 V rms 99,99 / 999,9 / 1500 V peak Frequency: f (Uac) 5,0 Hz ..19,99 kHz f (Iac) 5,0 Hz ..1999 Hz Power: Active power: 9999 W / 99,99 / 999,9 / 1500 kW Apparent power: 9999 VA / 99,99 / 999,9 / 1500 kVA Reactive power: 9999 var / 99,99 / 999,9 / 1500 kvar PF -1,00 ..+1,00 DPF 0,00 ..1,00 Distortion: Ripple 0,1 ..1000 % CF 1,00 ..10,00 THDr / THDf 0,0 ..100 % / 0,0 ..1000 % Harmonicals H01 ..H25
