Electrical installation demonstration board PROFiSIM 2

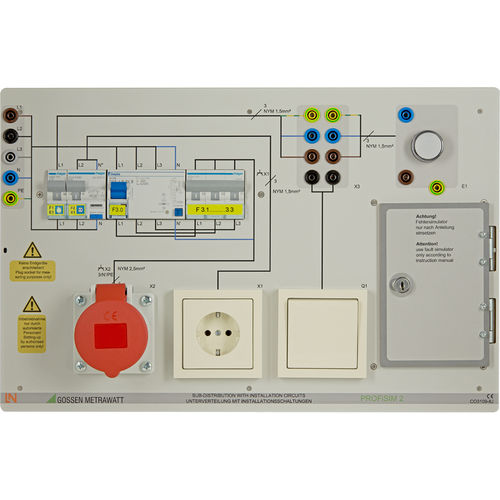

Installation Board: "Sub-Distribution Branch with Installation Circuits" for Fault Simulation for Measurements per IEC 60364.6 and EN 50110 (DIN VDE 0100-600, 0105-100). The installation board functions as a compact building service line with main grounding busbar for consumer systems including an fault simulator. It’s used primarily for training sessions and project work covering all aspects of "testing systems in accordance with DIN VDE 0100-600". In combination with appropriate measuring and test instruments (as PROFITEST Master / INTRO Series), all measurements and tests can thus be performed which are required for safety testing of electrical systems with up to 500 V including various types of networks and safety devices. Measurements include: - Low-resistance measurements at equipotential bonding conductors - Insulation resistance measurements - Measurements for testing RCDs - Loop impedance measurements - Earthing resistance measurements - Line voltage measurements The PROFiSIM 2 board is equipped with a simulation of a sub-distribution branch with electrical circuits for the implementation of testing and fault options. Experimental Content: - Simulation of a sub-distribution branch with 3 electrical circuits - Testing of various protective devices (and RCDs type A / B) - Troubleshooting in installation circuits Further Features: - Single and double fault circuit - Simulation of faults via switches - Lockable fault switching panel - Console-like housing - Can be used as a benchtop device or in an experimentation frame - Transport case (Option)
