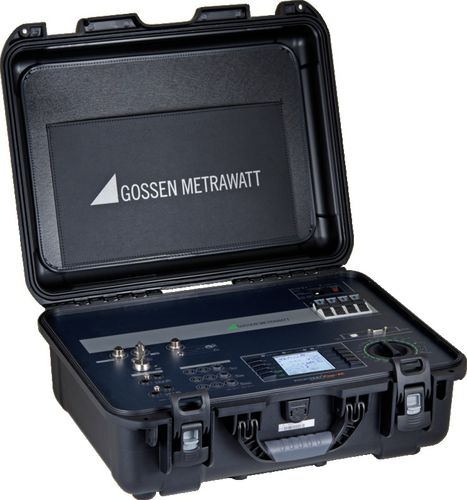

Electrical safety tester PROFITEST PRIME AC

for machinesfor electrical equipmentportable

Test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6, machines and systems per IEC 60204-1, low-voltage switchgear and controlgear assemblies per DIN EN 61439-1, PV systems per DIN EN 62446-1 and electric charging stations per DIN EN 61851-1. The PROFITEST PRIME AC is a test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6, machines and systems per IEC 60204-1, low-voltage switchgear and controlgear assemblies per IEC 61439-1, PV systems per DIN EN 62446-1 and electric charging stations per DIN EN 61851-1. The PROFITEST PRIME AC makes your investment decision easy because standards-compliant testing can be conducted on electrical installations per IEC 60364-6, on machines and systems per IEC 60204-1, on low-voltage switchgear and controlgear assemblies per IEC 61439-1, on PV systems per DIN EN 62446-1 and on electric charging stations per DIN EN 61851-1 with the accessories which are perfectly matched to the requirements. • Measurement in AC/DC systems • Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B • Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, as well as automatic polarity reversal and 25 A • Testing of RCD types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs • Combined RCD test with continuously rising ramp, time to trip, tripping current • Insulation measurement up to 1000 V with rising ramp • Testing of RCMs and IMDs • Measurement of leakage and differential current
