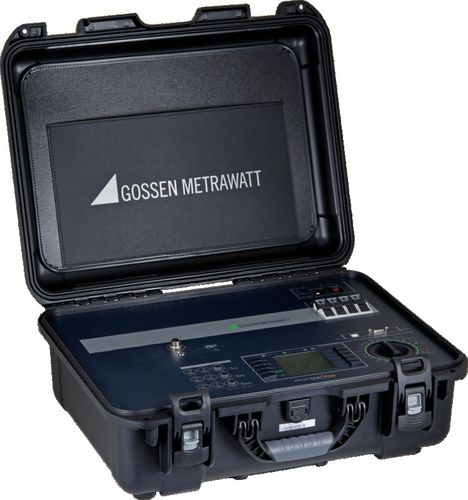

Electrical safety tester PROFITEST PRIME

for machinesfor electrical equipmentportable

Test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6 and DIN EN 50110-1, machines and systems per DIN EN 60204-1 and DIN EN 61439-1, PV systems per DIN EN 62446 and electric charging stations per IEC 61851-1 The PROFITEST PRIME is a test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6 and DIN EN 50110-1, machines and systems per DIN EN 60204-1 and DIN EN 61439-1, PV systems per DIN EN 62446 and electric charging stations per IEC 61851-1 The PROFITEST PRIME makes your investment decision easy because standards-compliant testing can be conducted on electrical installations per IEC 60364-6 and DIN EN 50110-1, on machines and systems per DIN EN 60204-1 and DIN EN 61439-1, on PV systems per DIN EN 62446 and on electric charging stations per IEC 61851-1 with the accessories which are perfectly matched to the requirements. Product Highlights • Measurement in AC/DC systems • Measurement of internal system resistance and fault loop resistance with high test current up to 690 V AC / 800 V DC without tripping RCD types A and B • Low-resistance measurement for protective and equipotential bonding conductors with 200 mA, as well as automatic polarity reversal and 25 A • Testing of RCD types A, AC, F, B, B+, EV, MI and G/R, as well as SRCDs and PRCDs • Combined RCD test with continuously rising ramp, time to trip, tripping current • Insulation measurement up to 1000 V with rising ramp • Testing of RCMs and IMDs • Measurement of leakage and differential current • Measurement of temperature and humidity • Voltage measurement, 1000 V AC/DC
