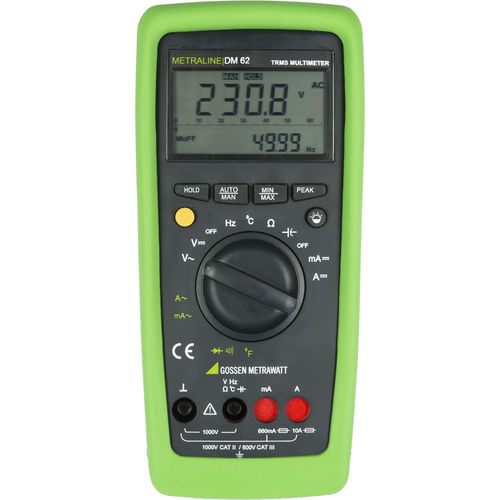

Digital multimeter METRALINE DM 62

with bar graph displayportable1000 V

The DM 62 was developed for the measurement of voltage and current, AC and DC, resistance, temperature, frequency, duty cycle, capacitance, continuity and diodes. It’s equipped with state-of-the-art technology and it assures precision measurement results. The extremely compact and ergonomic design provides for maximized ease of use and safety. Thanks to TRMS measurement and a broad range of functions, it’s universally suitable for demanding measuring tasks in a great variety of applications. Features: Voltage measuring range: DC/AC 100 μV ... 1000 V Current measuring range: DC/AC 10 μA ... 10.00 A Resistance: 100 mΩ ... 60.00 MΩ Capacitance: 1 pF ... 40.00 mF Frequency: 10.00 Hz ... 10.00 MHz Diode/continuity Duty cycle measurement (%) Temperature with type K thermocouple: -50 ... 1300 °C TRMS bandwidth: 2 kHz Hold / peak / min.-max. / relative (zero) Automatic/manual measuring range selection Dual digital display with analog scale and Background ilumination Automatic blocking sockets (ABS) UL certification 3-year guarantee battery powered
