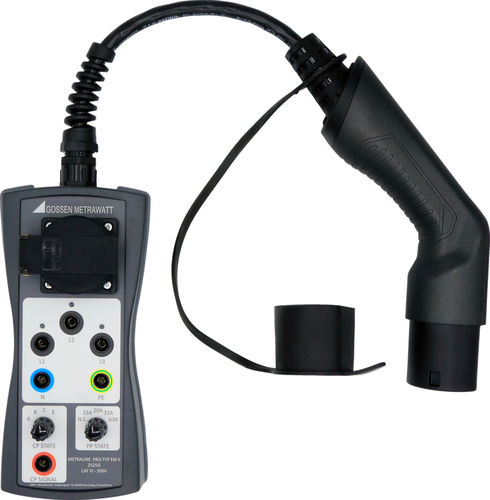

Electric adapter Metraline Pro-Typ EM II

testsingle-phase/three-phase

Single and 3-phase test adapter with type 2 plug for testing the effectiveness of protective measures at electric charging points with the Profitest Master, simulation of fictitiously connected electric vehicles and current-carrying capacity per IEC 61851-1. Extended CP test pin for testing charging points with permanently attached charging cable. -Vehicle simulation (CP) Vehicle states A through E are selected with a rotary switch. -Cable simulation (PP) The various codings for charging cables with 13, 20, 32 and 63 A, as well as “no cable connected”, can be simulated with the help of a rotary switch. -Fault simulation Simulation of a short-circuit between CP and PE by means of a rotary switch -Indication of phase voltages via LEDs Depending on the charging station, either one or three phases can be active. -Testing of electric charging stations with permanently attached charging cable by means of an extended CP test pin
