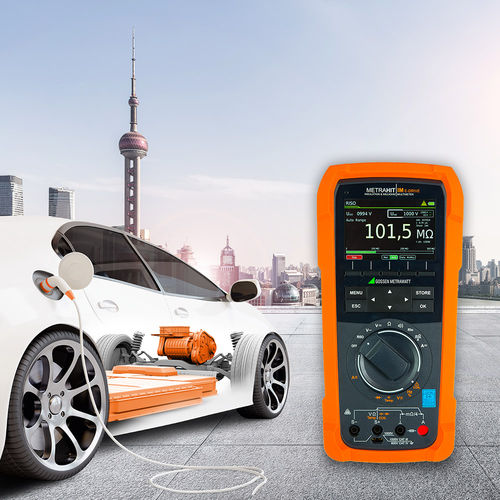

Graphic multimeter METRAHIT IM E-DRIVE BT

digitalwith bar graph displayportable

Multimeter, milliohmmeter, insulation measuring instrument, coil tester and data logger for hybrid and electric drives - all-in-one The METRAHit IM E-DRIVE BT is multimeter, milliohmmeter, insulation measuring instrument, coil tester and data logger in one. Applications include service and diagnostics for electric machines and systems, in particular in the automotive industry, in electric machinery manufacturing and in aviation technology.An all-in-one instrument with 30,000 digits: milliohmmeter, multimeter, data logger, insulation resistance tester and coil tester. Compact and multifunctional for use in the field: can be used advantageously in aircraft cockpits as well as in other constricted spaces, which would otherwise require the use of several individual instruments. • Milliohm measurement using 4-wire connection (Kelvin measurement) with 200 mA or 1 A • Insulation tester with test voltage from 50 to 1000 V • Inter-turn short circuit test with 1000 V test voltage • High-end TRMS multimeter with 100 kHz bandwidth • Safety-relevant tests for electric devices, drives and installations with a single field instrument • Testing of high-voltage systems in accordance with UN ECE R100 • Insulation resistance measurement per EN 61557-2 / VDE 0413-2 • Rlow installation testing per EN 61557-4 / VDE 0413-4 • Bonding test and equipotential bonding measurement, e.g. on aircraft outer skins (lightning protection, wick test) power supply, lithium battery, battery powered, with low resistance, 4-wire
