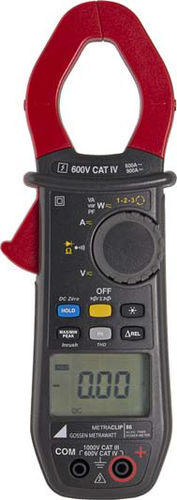

Digital clamp multimeter METRAclip 86

portable600 V1000 A

The METRAclip 86 clamp multimeter meets all of the expectations of operations in the electrical trades and is suitable for applications in the low-voltage range with low to medium power values, e.g. maintenance of electrical installations and machinery, troubleshooting, installation of heating and air conditioning systems and measurement of motor starting current. Clamp opening: 34 mm Current: AC 60,00 / 600,0 A rms bei 10 Hz - 3 kHz DC ±60,00 / ±600,0 / ±900 A dc AC+DC 60,00 / 600,0 A rms 60,00 / 600,0 / 900 A peak Inrush current: 6 ..600 A rms / 900 A peak Voltage: AC 60,00 / 600,0 / 1000 V rms bei 10 Hz - 3 kHz DC ±60,00 / ±600,0 / ±1000 V dc AC+DC 60,00 / 600,0 / 1000 V rms 60,00 / 600,0 / 1400 V peak Frequency: f (Uac) 5,0 Hz ..19,99 kHz f (Iac) 5,0 Hz ..2999 Hz Power: Active power: 5999 W / 59,99 / 599,9 / 900 kW Apparent power: 5999 VA / 59,99 / 599,9 / 900 kVA Reactive power: 5999 var / 59,99 / 599,9 / 900 kvar PF -1,00 ..+1,00 Distortion: THDr / THDf 0,0 ..100% / 0,0 ..1000%
