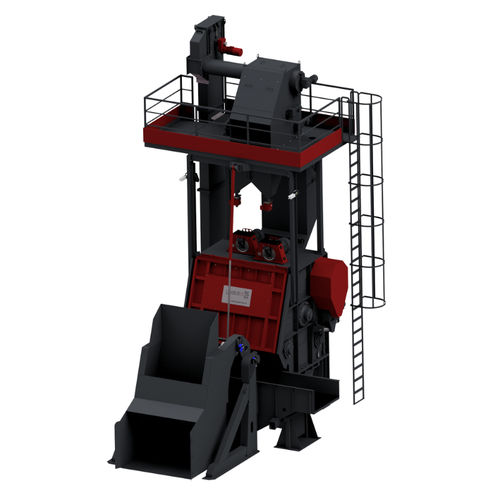

Belt shot blasting machine G

for metalautomaticcontinuous

DESCRIPTION Tumble blast machine type G is ideal for mass-produced parts, which can be tumbled and will perfectly meet your requirements for the casting and mold desanding, descaling, deflashing, deburring, and shot peening. Tumble blast machines with manganese steel belt are mostly used to process ferrous and non-ferrous castings, forgings, weldings and heat treated parts. G type shot blasting machine can be integrated to a fully automatic process with addition of loading and unloading equipment. G type tumble blast machines are built in size that can accept single fill / load up to 5,000 kg (volume 2000 l). Tumble blast machine belt is made from construction steel (manganese is optional) liners. When in motion, belts special shape causes treated objects to turn and roll, which causes the whole surface of the treated objects to be quality blasted in a jet of abrasive. For emptying the blasting machine, the belt rotation is switched in the opposite direction turning mode. When the blasting machine works in automatic mode the treated objects are loaded into the machine by mean of the hydraulic skip loader, tailored to the customer’s specific component containers. The discharged pieces fall onto vibratory or belt unload channel conveyor and are transported to the next operation. The shot blasting machine’s housing is protected by wear-resistant manganese steel liners. High efficiency of the blasting machine is enabled by the automatic and continuous abrasive handling and reclamation system for continued returning and cleaning of the shot blasting media, along with efficient blasting wheels made from wear-resistant materials.
