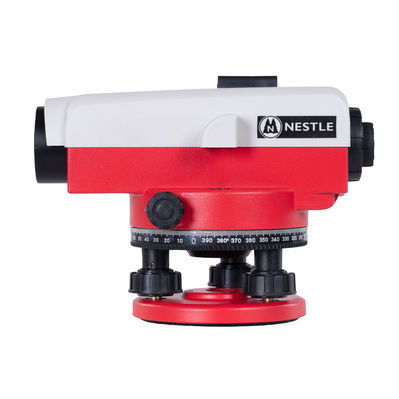

Optical level NESTLE NAL Series

horizontalautomaticrotary

Automatic levels for the buildind industry Type 2 of the NESTLE NAL series is a version that has been revised and further developed in detail. The most striking feature from the outside is a new design. The NAL series adopts the proven technical features of the NAL series and is therefore the ideal levelling instrument for the building industry. • Available with 24x, 28x or 32x magnification. • Horizontal circle with graduation for horizontal angle measurement. • Determination of the height difference between several points. • Optical distance measurement using two distance lines. • Stake out the height of a point. • Easy-to-reach rotary knobs on both sides for the fine adjustment. • Large, ergonomically shaped rotary knob for focusing. • Housing sealed according to protection class IP54 and thus splash-proof. • Housing base made of aluminium, cover and rotary knobs Plastic. NAL 24 with 24x magnification, model no. 15041001. NAL 28 with 28x magnification, model no. 15043001. NAL 32 with 32x magnification, model no. 15045001. Scope of delivery: levelling instrument, plumb bob, adjustment tool, Instruction manual, case. Applications • Robust and precise with an optimal price-performance ratio. • Very good optics with above-average workmanship.
