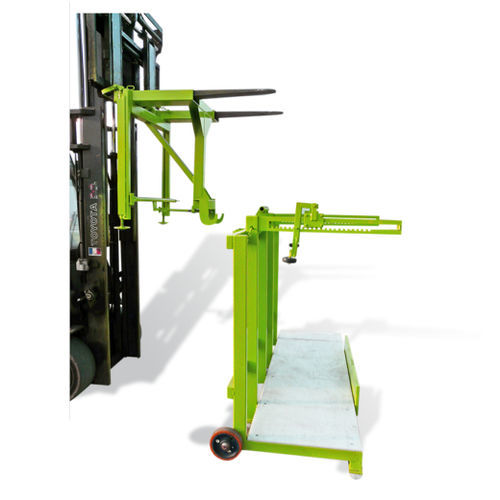

Mechanical manipulator MP series

forkloadhandling

FACILITATES DISTRIBUTION OF SINGLE UNITS BY SLIDING PLASTERBOARDS OF DIFFERENT THICKNESSES. AN INNOVATIVE FEATURE THAT PREVENTS MUSCULOSKELETAL PROBLEMS. APPROVED BY A REGULATORY BODY. VERTICAL STORAGE. • Trolley with 4 high-density polyethylene feet • Two forklift truck fork grips in 165 x 55 int. sleeves, distance between sleeves 660 mm • 1 central grip for handling with the spreader • Painted equipment – Weight 244 kg Handling spreader • 1 single spreader can manage a range of board holder trolleys • Fork grips in 170 x 70 int. sleeves, distance between sleeves 660 mm • Gripping hook with automatic locking system and manual unlocking lever located next to the bulkhead • Weight 86 kg
