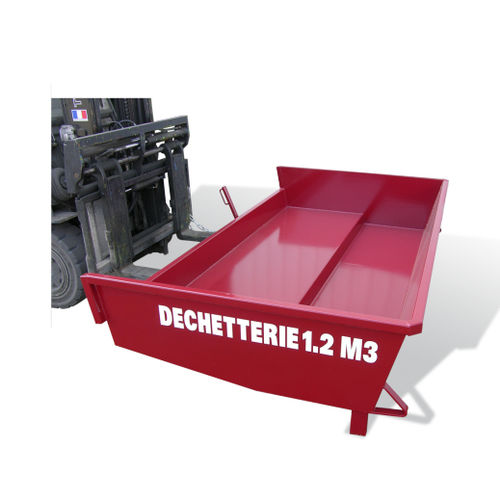

Waste tilt truck GS-D

automatic

IDEAL FOR CARRYING BUILDING WASTE. LOW HEIGHT FOR EMPTYING INTO TILTING FLAT-BED TRUCKS. • Max load 2000 kg • 3 mm thick body with 5 mm thick press-formed metal sheet base • Automatic activation of tipping by switch and manual control by lever • Model on feet with space for pallet truck under the sleeves • Supplied with one 8 diam. safety chain • Internal dimensions of 2500 x 1400 mm with loading height of 400 mm • Overall dimensions : 2582 x 1579 x 600 mm high • Equipment painted in the colour of your choice with 1.2 m3 waste markings • With six 10 diam. holes on the base of the body for rainwater drainage • Weight : 290 kg • Fork holding sleeves Int. cross-section 170 x 70 and 800 mm between sleeves • Galvanized version on request
