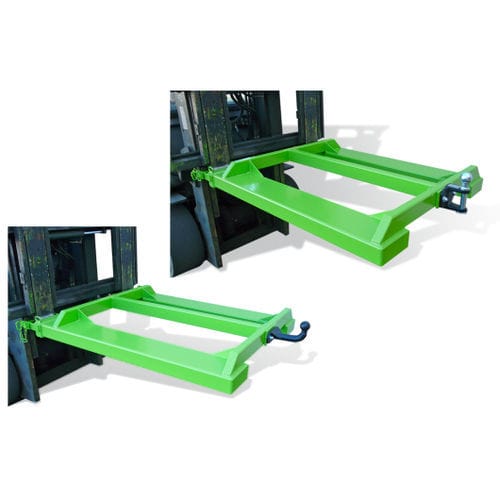

SAFE MOVEMENT OF MOBILE HOMES, CARAVANS, ETC...
MOVEMENT ON INTERNAL TRANSPORTATION TRACKS.
FORKS HELD IN SLEEVES WITH AN INTERNAL CROSS-SECTION OF 170 X 70 MM, 800 MM DISTANCE BETWEEN SLEEVES.
FORK BASE LOCKING SYSTEM WITH REMOVABLE PIN.
Ref. ATP10000
— Model equipped with a rightangled ball coupling
— Enables a wide range of movement
— Vertical static load on the ball : Max. 120 kg
— Towable weight : Max 2T
— Weight 79 kg
Ref. ATP12000
— Model equipped with a combination jaw pin with one ball coupling
— Can be handled via a coupling ball or ring
— Max. Static vertical load :
• On the ball coupling : 120 kg
• On the jaw : 120 kg
— Max. towing weight :
• On the ball coupling : 1.5T
• On the jaw : 3.5T
— Weight 80 kg
Ref. ATP15000
— Model equipped with a reinforced mixed hook
— Prized by professionals for its safety and robustness
— Usable for trailers with ring and with coupling head
— The mixed hook with its nippers and coupling allows 2 uses
— Reinforced attachment to the heels of the forks
— Static vertical load on the ball hook: 375 kg
— Maximum towable load on the ball hook: 3T5
— Weight 83 kg
