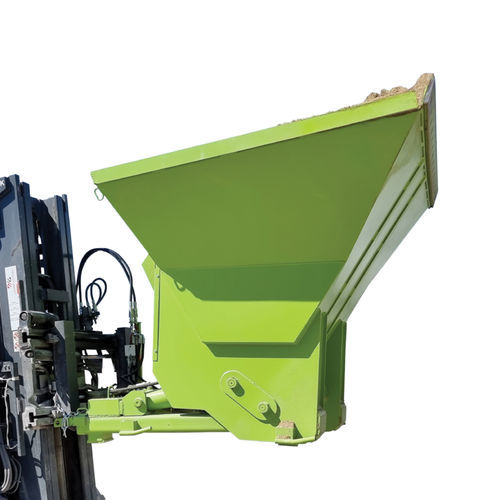

Big bag bucket GB series

standardfor backhoe loadersfor forklift trucks

DIRECT LIFTING ON FORKS. SIMULTANEOUS MATERIAL PICK-UP FROM THE GROUND/FLOOR AND BIG-BAG FILLING. CERTIFIED BY AN APPROVED BODY INCREASED PRODUCTIVITY AND SAFETY - ACCURATE AND FAST FILLING — Pick-up width 2080 mm — 2 x 100×50 double-acting cylinders for the loading function — 1 x 40×25 double-acting cylinder for the cover opening function — Automatic system for controlling the 2 functions via a single hydraulic connection Caution: The 2 functions run one after the other without any dead time. — 3/8” push-pull connection to accessory (hose to the fork-lift not supplied) — Cover hatch 350 x 450 mm — Locks on forks with 8 mm diameter lifting chains — Removable counter blade — 4 quick-release big-bag sling points — 250 or 500 litre big-bag filling possible with optional kit — Bag lifting MWL 2 T
