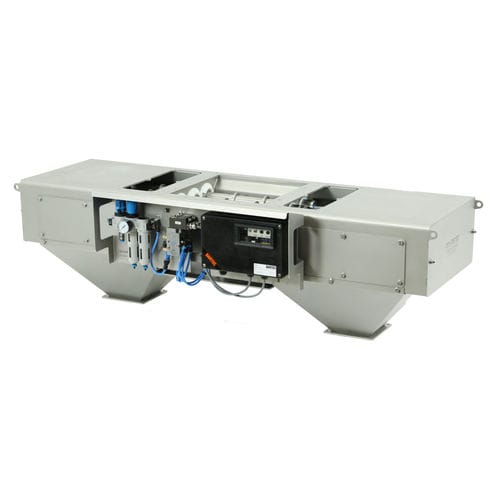

Magnetic grate separator SECC series

staticparticlegranules

This unique Cleanflow type discharges the filtered ferrous contaminants during production. So no production stop is required. The time-interval controlled discharge of ferrous particles makes it suitable for product streams with relatively much ferrous contamination. Suitable for granulates and dry, free-flowing powders in non-pressurized free-fall transport pipes. The automatically controlled discharging of captured ferrous particles makes this type of Cleanflows suitable for places where they are hardly or not accessible for operation. Automatic cleaning (continuous) 2 magnetic grids, placed in cascade Magnetic bars in pneumatic tube (Ø34 mm, 9400 gauss) Capacity 30 - 90 m³/h ATEX II 1/2 D Suitable for granulates and free-flowing powders with relatively large amounts of ferrous contaminations in non-pressurized free-fall pipes. Due to the automated contral and operation they are suitable for less easily accessible situations and / or centrally managed controls. Not suitable for: When product loss is unacceptable. During a cleaning cycle some product might flow out of the product channel, together with the caught magnetic particles. Poorly flowing sticky / fatty powders that cause clogging. For those applications the rotating versions of these Cleanflows are a better solution. Pipeline transport under pressure. Products with particles smaller than 0.2 mm.
