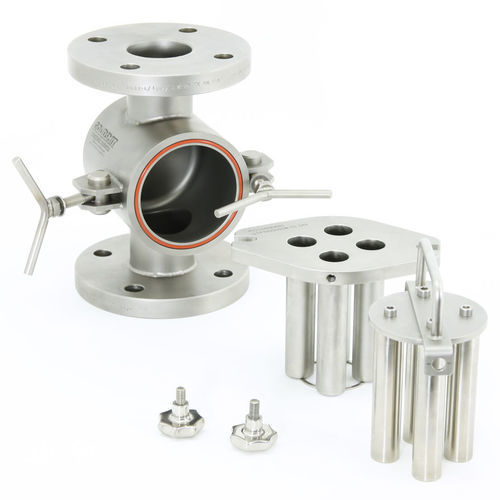

Pressure filter SSFI series

liquidstrainermagnetic

Robust filter for general industrial applications without risk of bacterial growth. For magnetic filtering of fine ferrous contaminants - such as stainless steel wear particles - from your liquid and powder flows in pressure pipes up to 10 bar. Manual quick-cleaning. The largest versions are additionally equipped with a removal guide, so that the magnet unit does not have to be lifted out, but can be extended. Manual quick cleaning Capture Fe particles from 30 µm - 2 mm Sizes DN50-200 Max. 10 bar / 140 °C Magnetic bars in extractor tube (Ø23|Ø25 mm, 10,700 | 8000 gauss) This robust magnetic filter is suitable for industrial applications where liquid mixtures and powders are transported in pressure pipes up to 10 bar. The design and finish are industrial, meaning they are only intended for use in applications with no risk of bacterial growth. We can calculate the precise pressure drop with these filters in your situation for gaseous or liquid products using our FEM software. The pressure drop depends on the physical properties of your product flow (viscosity) and its speed. Please contact us about this.
