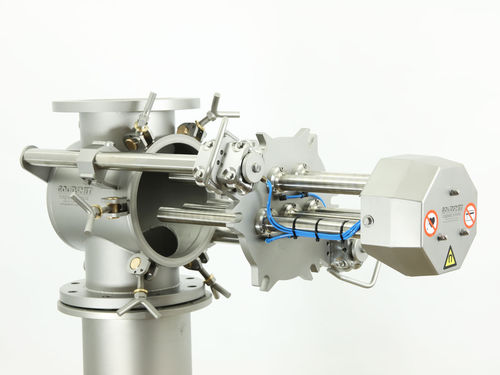

Magnetic filter SSFNP series

liquidstrainerpressure

Robust filter for general industrial applications without risk of bacterial growth. With these large diameters, the filters are too heavy to lift. Therefore, the cleaning is semi-automatic. For magnetic filtering of fine ferrous contaminants - such as stainless steel wear particles - from your liquid and powder flows in pressure pipes up to 10 bar. Semi-automatic cleaning Capture Fe particles from 30 µm - 2 mm Flanges DN150-300 (EN 1092-1) Max. 10 bar / 140 °C Magnetic bars in pneumatic tube (Ø34 mm, 9400 gauss) Liquids and powders in pressure lines up to DN300 This very robust magnetic filter is suitable for many industrial applications where liquid mixtures and powders are transported in pressurized pipelines up to 10 bar. Pneumatic magnetic bars Ø34 mm Magnet quality N-42SH, 9,400 gauss on tube Ø34 Max. 10 bar / 140 °C Inlet/outlet: DN150 to D300 (EN1092-1) Finish: grit blasted Materials - in contact with product: AISI316(L) Material gaskets: Silicone acc. EC1935 / FDA
