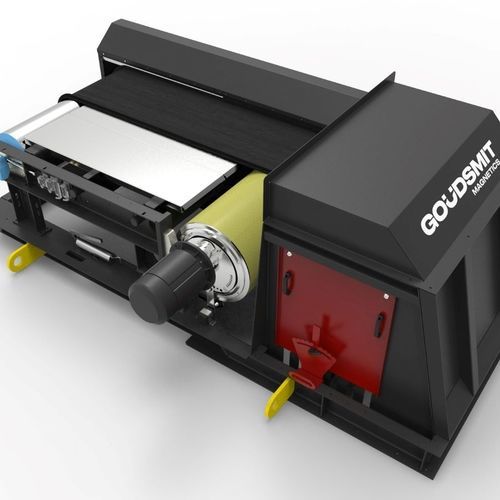

Eddy current separator EddyXpert

ECSmetalfor solids

The Eddy current separator type EddyXpert is the all-rounder of the ECS machine line and is suitable for a large number of product streams: from coarse to medium-fine fractions. Many possible combinations for desired application. Separating NF particles 5-200+ mm 12 or 22HI -pole eddy current magnet roller Combined ferrous and non ferrous separation possible For belt width 600-2000 mm Eccentric adjustable magnetic field They purify large bulk streams and/or separate non-ferrous metals for reuse. Eddy current separators have many uses. They can handle high capacities, because the conveyor belt separates and carries away non-ferrous metals continuously and fully automatically. An important factor for good separation is an even flow of material, supplied by a vibratory feeder or conveyor belt for example. This results in a uniform distribution across the belt, so that the material arrives as a mono-layer. This means that the supplied layer thickness is about as thick as the largest piece, and thus that there are no pieces lying one on top of the other. This is especially important with smaller fraction sizes. Goudsmit separators are robustly built so they can remain operational day and night in even the most demanding applications, such as incinerator slag reprocessing. Application of the EddyXpert include: recovery of coarse to fine non-ferrous metals from slag from waste incineration plants
