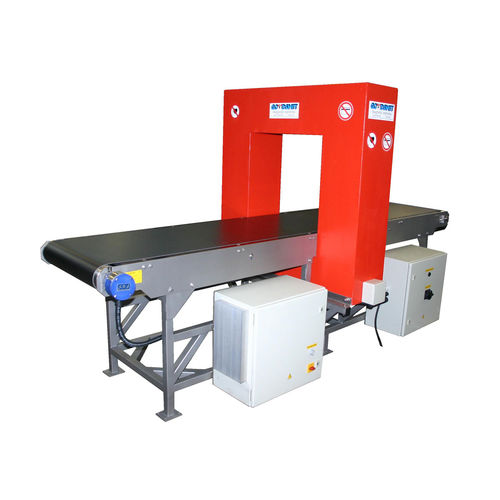

Tunnel demagnetizer HDTU-H-R series

for workpiecesconveyor beltcompact

These tunnels demagnetize long products and materials with an irregular surface. For thin-walled products with a wall thickness of up to 10 mm or solid products up to 20 mm thick. High-frequency tunnels demagnetize thin wall steel products at a frequency of 50/60 Hz. You can connect these directly to the mains power. Also available with conveyor belt or roller conveyor for automated processes. Max. penetration depth 10-20 mm Frequency 50/60 Hz Available with conveyor system Rectangular or round passage Rectangular passage: For long, thin-walled products and materials with an irregular surface. drill bits and other machine tools sprockets and gears bolts, nuts and other fasteners steel components in the automotive industry Round passage: For installation in a pipe system and for demagnetizing round products such as: pipes balls in ball bearings links in push belts steel dust in air filter systems steel blasting grit for blast cleaning
