Acid pump 3185

electriccentrifugalstationary

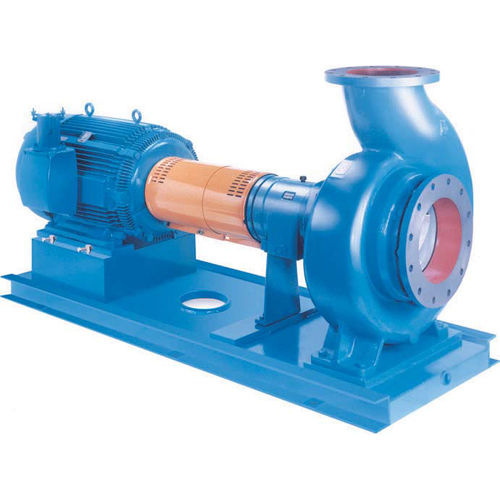

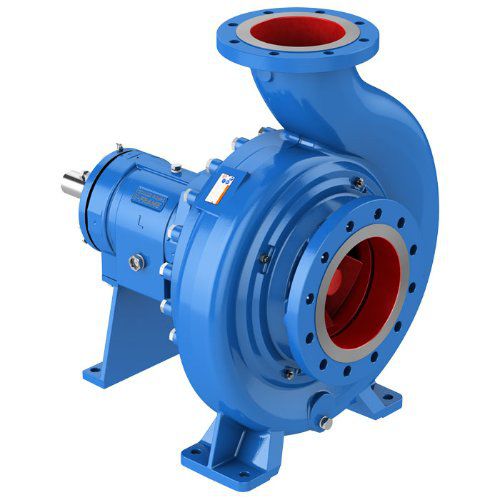

All customer requirements were considered in the design of the 3185 paper stock/process pump. The result is a true world class pump line. . .a product without compromise. Consider the advantages: Excellent Hydraulic Coverage High Efficiency Extreme Ease of Maintenance Optimum Mechanical Reliability International Design Design Features International Design 3185 pumps comply to ISO 5199 with eight sizes conforming to ISO 2858 dimensions. Metric fasteners and fittings used throughout. Hydraulic Coverage Line designed for full 50/60 Hz coverage. External Impeller Adjustment Original high performance maintained by simple axial adjustment resulting in low operating costs, reduced downtime. Sealing Flexibility Choice of packing, mechanical seals or dynamic seal. Application Flexibility Choice of open or enclosed impeller. Back Pull-out Construction Spacer-type coupling allows one craft maintenance. Renewable Wear Parts Low maintenance costs. Labyrinth Seals Eliminate lubricant contamination for maximum bearing life. Maximum Parts Interchangeability Entire line uses just four power ends. World Class Pump Line ISO or JIS 16 bar flange drilling mm-dimensioned O.D. of mechanical seal sleeve mm-dimensioned bearing locknut mm-dimensioned coupling extension
