Acid pump 3910

electricsemi-submersiblecentrifugal

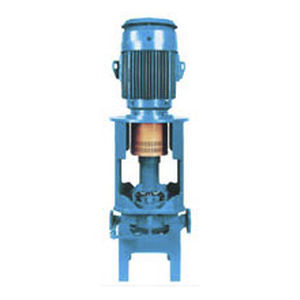

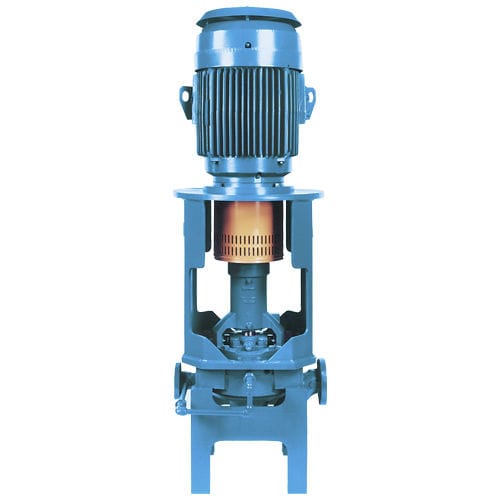

Goulds Model 3910 API 610 (OH3) vertical in-line pump provides benefits of low installation costs and space savings...without compromising reliability, maintainability, safety or hydraulic performance. Rotating Element Shaft and bearings are same as used with Goulds Model 3700 horizontal process pump. Proven design preferred for toughest services. Engineered In-Line Suction Design The 3910 suction design is the result of extensive model and full-scale testing. NPSH requirements are minimized. Design assures streamlined, even flow into impeller eye; reduces losses encountered in conventional suction designs. Labyrinth Heat Flinger Absorbs and dissipates heat conducted through the shaft. Heat flinger also circulates air between liquid end and power end to reduce heat build-up. Multiple Impellers Available with all pump sizes. Accommodates specific user operating requirements for trouble-free operation. Optional Pump Supports Provide additional support and stability of entire unit during installation and maintenance. Optional Cooled Sealed Chamber Reduces heat radiated to power end and bearings, and allows added flexibility of choice of lubrication.
