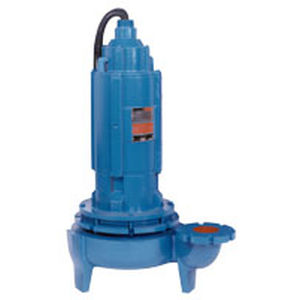

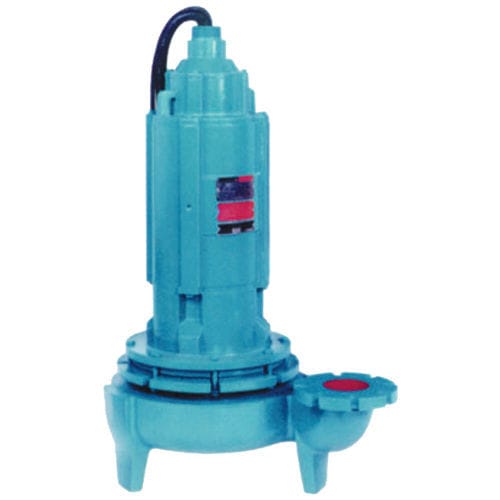

Slurry pump HSU

electricself-primingsubmersible

Hydro-solids pumps. Recessed impeller easily accommodates large, stringy and fibrous solids without clogging. Because it is completely submersible, the HSU can be used in virtually any sump application. Specifications Solids to 6 inches (152 mm) Design Features Fully Recessed Impeller - Allows large stringy or fibrous material to pass through the pump without binding or clogging. Concentric Casing - Concentric design facilitates flow of pumpage and solids through the pump while minimizing radial loads. Integral Support - Three cast-in legs provide simple, stable support without additional parts. Heavy Duty Motor Adapter - Extra thick in critical areas. Extended shroud encircles impeller and protects casing from wear. Integral Discharge Elbow - Cast-in elbow reduces parts and allows easy installation. Submersible Motors Goulds submersible series motors are designed and built specifically for tough slurry pumping. Heavy-duty design features for reliability include: UL and CSA Approved Explosion PRoof Epoxy encapsulated and butt-spliced cable entry system prevents liquid from entering top of motor and provides non-wicking design Permanently lubricated and sealed ball bearings F Class insulation and 1.15 service factor standard Tandem mechanical seals provide complete protection for motor internals Thermal protection standard Dual moisture probes provide early warning of seal failure Conforms to NEMA, IEEE, ANSI and NEC standards High temperature options allows operation to 194º F (90º C) 5 year Pro-Rated Warranty
