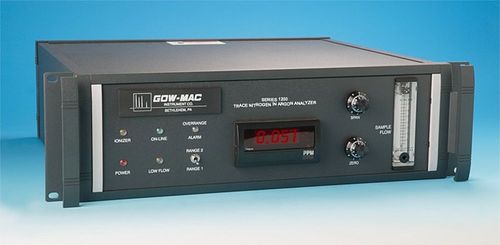

Argon analyzer 0 - 200 ppm | 1200 series

nitrogengastrace

Applications include: Air separation plants, cryogenic truck loading stations, specialty gas laboratories, new line certification, cryogenic steel manufacturing, chemical plants, gas management/monitoring systems, quality control for truck fills and gas cylinders, process control, welding gas management, semiconductor manufacturing. - Available in three CE approved configurations: 0-10/0-100 parts per million (ppm), 0-2/0-20 ppm, 0-20/0-200 ppm - Guaranteed 10 ppb sensitivity - Measuring system based on spectral emission of argon plasma - Exceptional detector performance by utilizing patented electro-optical modulation - On-line continuous trending - Fast responsefast recovery - Ambient temperature limits: 16-35 C - Display: LED digital - Sensitivity: 0.01 ppm - Output: 4-20 mA - Dry contacts for over-range protection and range selection indication - Non-depleting cell for extended operation - No valves, columns, or carrier gas - No radioactive source - Installation: bench or 19 rack - Power: 115-230 V, 50-60 Hz
