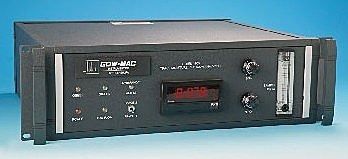

Argon analyzer 0 - 50 ppm | 1400 series

gastracemoisture

The main applications of this instrument include: The air separation plants and argon purification plants. It can be used for cryogenic truck loading stations, special gas laboratories. Other various applications include new line certification, cryogenic steel manufacturing, chemical plants, gas management/monitoring systems, quality control for truck fills & gas cylinders, welding gas management, semiconductor manufacturing. This instrument is available in two CE approved configurations: 1. 0-2/0-20 parts per million (ppm) 2. 0-5/0-50 parts per million (ppm) Main features of this product are that it guarantee's 10 ppd sensitivity. This measuring system is based on the spectral emission of argon plasma. Exceptional detector performance is provided by utilizing the patented electro-optical modulation. The system has a very fast response and has an on-line continuous analysis. Recovery rate from levels of moisture is very high. The output range is of 4-20mA. It has dry contacts which are helpful for over range indication and range selection indication. It doesn't have valves, columns or carrier gas.
