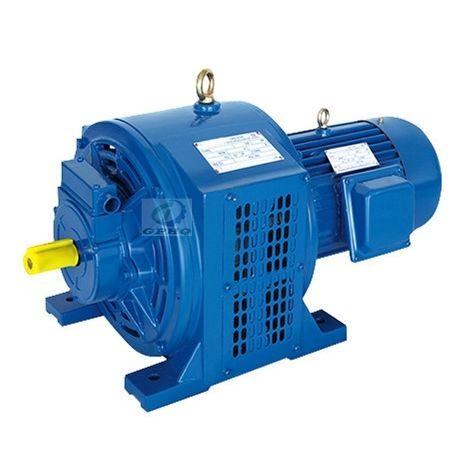

AC motor YCT series

asynchronousfoodconveyor

GPHQ YCT electromagnetic speed adjustment asynchronous motor YCT series electromagnetic speed adjustment asynchronous motor is a kind of communication constant torque stepless speed motors. Its speed control characteristic is large speed range, no out of control area,high start torque,able to strong excitation starting, no impact on the grid when frequent starts . Application They are used in textile industry, chemical industry, metallurgy, building materials, food, mining and other departments, for example, they can be used to paint line, assembly line of the conveyor belt, note plastic machine, printing machine, printing and dyeing machine, air conditioning equipment, transportation equipment, etc. This machine is applicable to variable torque of the centrifugal pump and fan on load, use rotate speed adjustment instead of the valve open and close to control the flow and pressure, so as to achieve the effect of energy saving. Working conditions Ambient operation temperature: -15°C ~ +40°C Altitude: Not more than 1000m Rated frequency: 50Hz/60Hz type of cooling: IC411 Operation Mode: Consecutive (S1)
