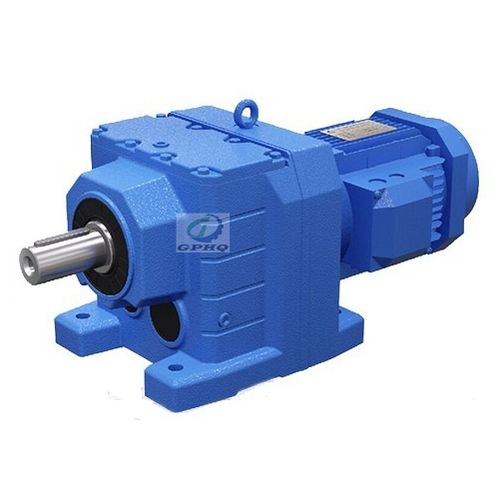

AC motor R series

asynchronouscompact

Products overview: 1, R gearbox save a space oblique gear machine of decelerate of hard tooth flank, reliable and durable, bear high overload capacity, power of up to 132 kw. 2, the gear reducer in combination with the international technical requirements, has the very high content of science and technology; 3, R helical gear pause of decelerate of hard tooth flank, with high quality forged steel material semi steel box, gear surface after high frequency heat treatment; 4, low energy consumption, superior performance, reducer efficiency is as high as 95% above; Little vibration, low noise, high energy saving; 5, after precision machining, to ensure that the axis parallelism and locating bearing requirements, the formation of helical gear transmission assembly equipped with various types of motor reducer, combined into mechanical and electrical integration, fully guarantee the quality of the deceleration motor products use features. Technical parameters: Speed ratio range: R basic 3.33 ~ 289.74, RX 1.3 ~ 8.65, R/R combination can be up to 27001 Torque range: R basic 85 ~ 18000 Nm, RX 20 ~ 1680 Nm Basic 0.18 ~ 160 kW power range: R, RX 0.18 ~ 132 kW Performance characteristics: 1, small offset output, compact structure, make the best use of housing space, secondary and tertiary in the same enclosure. 2, the integral casting box, box structure stiffness is good, easy to increase the strength of the shaft and bearing life. 3, installation: installed foot, flange with flange size, easy to choose. 4, solid shaft output, the average efficiency is the secondary and tertiary 96% and 94%, combination of R/R, the average efficiency of 85%.
