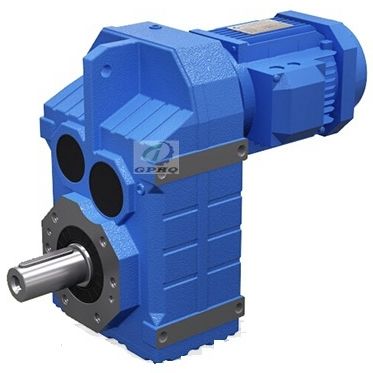

Helical gear gear reducer F series

parallel-shaftcompact

products overview: 1 parallel shaft helical gear reducer, F low energy consumption, superior performance, efficiency is as high as above 95%. 2, save a space, reliable and durable, bear high overload capacity, the power can reach more than 90 kw. Three parallel shaft helical gear reducer, F combining international technical requirements, has the very high technology content. 4 parallel shaft helical gear reducer, small vibration, low noise, high energy saving, choose YouZhiDuan steel material, semi steel box, gear surface after high frequency heat treatment. 5, after precision machining, to ensure that the axis parallelism and positioning accuracy, it constitutes the speed reducer of gear transmission assembly is configured with all kinds of motor, formed the mechanical and electrical integration, fully guarantee the quality of the deceleration motor products use features. Technical parameters: Speed ratio range: basic 3.81 ~ 281.71, F/R combination can be up to 31434 The torque range: 200 ~ 18000 Nm Power range: 0.18 ~ 200 kW Performance characteristics: 1, parallel output, compact structure, big transmission torque, stable working, low noise, long service life. 2, installation: installed base, hollow shaft, flange installation, small flange installation, torque arm. 3, direction of rotation, the same basic secondary input and output level 3 opposite; F/R combination of consulting the other. 4, output mode: the hollow or solid shaft output shaft output. 5, the average efficiency: the secondary and tertiary 96% and 94%, F/R combination efficiency 85% on average.
