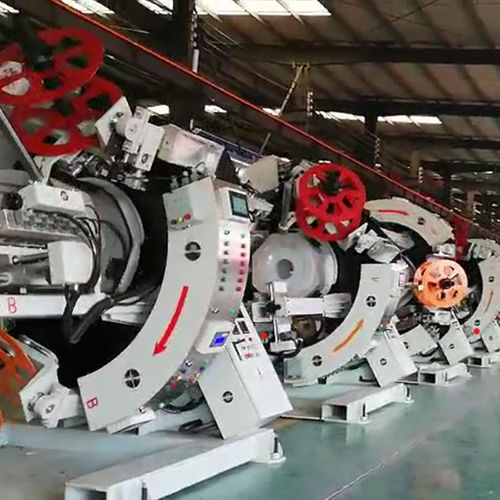

Tube extrusion line GP-RTP series

tapefor thermoplasticsfor RTP pipes

(TCP Pipes & RTP Pipes)Continuous Fiber Glass Tape Wound Reinforced Thermoplastic Composite Pipes Making Machine RTP reinforced thermoplastic composite pipe is mainly used for water injection pipe, oil pipeline, long-distance flexible high-pressure water conveyance pipe, natural gas conveyance and distribution, high-pressure drinking water and irrigation pipe in petroleum development. The continuous glass fiber reinforced composite pipe (CF-RTP) is a continuous glass fiber reinforced high pressure pipe. The pipe is divided into an inner liner layer, a reinforcing core layer and an outer protective layer. The inner liner is made of PE (or PP/PA/PERT) as the main material, which acts as a medium for guiding, anticorrosive and conducting internal stress; the outer protective layer acts as a protective core layer and conducts external stress. The reinforcing core layer is subjected to multi-layer interleaving to bear the effects of stress, temperature and tube creep resistance. Mainly used in heat pipes, hot spring pipes, oil pipes and water pipes, it is a new type of high pressure resistant pipe that replaces conventional plastic pipes. Specifications and properties of commonly used RTP pipes Common pipe diameter: 1.5-20 Inch Common pipe pressure level： 1.5-6 Inch diameter（3.5-30MPa) 8-20 Inch diameter （2.5-5.5MPa） Glass fiber UD tape winding layer : 4-16 layer Glass fiber UD tape winding thickness: 1.2-6mm Suitable for UD tape width: 45-300mm
