3-phase separator M9103
oilwatergas

3-phase separator - M9103 - Grace Instrument Co. - oil / water / gas
3-phase separator - M9103 - Grace Instrument Co. - oil / water / gas
3-phase separator - M9103 - Grace Instrument Co. - oil / water / gas - image - 2
Add to favorites
Compare this product


Characteristics

Technology
3-phase
Separated substance
oil, water, gas
Weight

27 kg
(59.52 lb)

Description

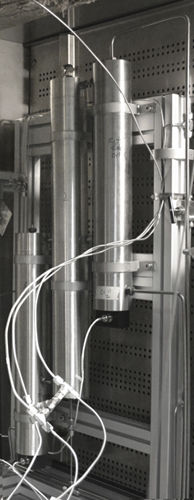

Accurately Measures 2 Fluids and a Gas The Grace Instrument M9103 3-Phase Separator measures the level of two fluids in a gravity-based 2-phase high-pressure separator. It provides output signals (serial ASCII characters) proportional to either absolute level or relative to a userselected set-point. The M9103 separates water, oil, and gas from well effluent using three connected high-pressure vessels. As an ultrasonic signal travels through the sample fluid inside the vessel, a data acquisition system measures ultrasonic energy. A small amount of the transmitted energy is reflected back to the ultrasonic transducer, where it is recorded and saved to a computer system. Advanced, Complementary Software Custom Grace Instrument software, included FREE with each unit, allows the user to monitor and receive data through a PC interface. The robust, high-quality design of the separator requires little to no maintenance, making the M9103 a perfect choice for those in the oilfield production or petroleum industry. The M9103 3-Phase Separator also operates automatically without the use of manual threshold adjustments. Fluid volumes can be calculated accurately, and raw waveform data can be plotted and easily exported for future use. • Control system measures ultrasonic pulse through transducer transmission. • Ultrasonic energy is transmitted inside vessel can be easily recorded with PC interface. • Unit accurately measures fluid volume and raw waveform data. • Highly reliable ultrasonic 3-phase separation. • Easily monitors output signal through custom Grace Instrument software. • Separates two fluids and a gas through a gravity-based high-pressure separator.

Catalogs

M9103
M9103
1 Pages
