Diaphragm pump Husky 1050
wateroilair-driven

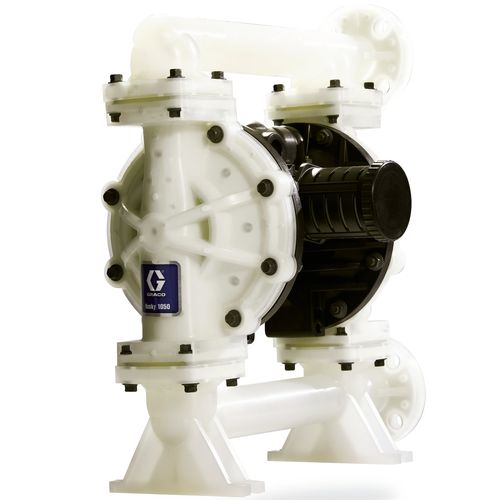

Diaphragm pump - Husky 1050 - GRACO - water / oil / air-driven
Diaphragm pump - Husky 1050 - GRACO - water / oil / air-driven
Diaphragm pump - Husky 1050 - GRACO - water / oil / air-driven - image - 2
Diaphragm pump - Husky 1050 - GRACO - water / oil / air-driven - image - 3
Diaphragm pump - Husky 1050 - GRACO - water / oil / air-driven - image - 4
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Fluid
water, oil
Operation
air-driven
Mobility
stationary, mobile
Domain
industrial
Applications
transfer
Material
polypropylene
Other characteristics
spring, modular, flow
Flow

Max.: 189 l/min
(49.92852 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Pressure

Max.: 8.6 bar
(124.732 psi)

Min.: 0 bar
(0 psi)

Fluid temperature

66 °C
(150.8 °F)

Description

The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece centre section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps. Longer Diaphragm Life Up to 5x longer diaphragm life for less maintenance and downtime Modular Air Valve Stall-free, low pulsation operation provides smooth and rapid changeover One-Piece Centre Section Eliminates air leaks for more efficient operation Four Bolt Joint Design Bolted design provides even sealing pressure for leak-free operation Multiple Ports Increased number of ports for installation flexibility Optional Features DataTrak™ - Runaway protection and tracks material usage Pulse Output - Cycle count capability Spring loaded, externally serviceable pilot valves for faster change over and reduced pulsation 30% more efficient than the market leader 20% increase in fluid flow compared to the Husky 1040
