Engineering software MWF

designmodelingsizing

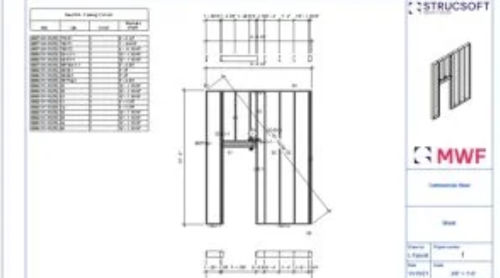

The most comprehensive Revit® framing plugin for architects, engineers, contractors and drafters. MWF is an end-to-end Revit® plugin capable of automating and simplifying the design and fabrication of wood and cold formed steel framing. Boost your team’s efficiency by accelerating the modeling and engineering of walls, floors, ceilings and trusses. Transform Revit® into a powerful manufacturing tool by linking your 3D models to CNC machines and saws. Unlock the full potential of Revit® framing with MWF. Design Automation Speed up framing with MWF’s rule-based, template driven approach. Customize framing elements and/or conditions. Gain access to proprietary studs from providers including ClarkDietrich, CEMCO, ISPAN, Marino\Ware, SCAFCO, Howick and more. Floor Engineering Integrate timber floor systems and beams with industry sizing engines such as Forte by Weyerhaeuser and Sizer by WoodWorks. Truss Engineering Design and engineer a variety of trusses including wall trusses, back-to-back and in-line trusses, complete with engineering reports. Clash Detection Improve team collaboration by detecting clashes between wall and stud members project wide, and easily place framing around them.
