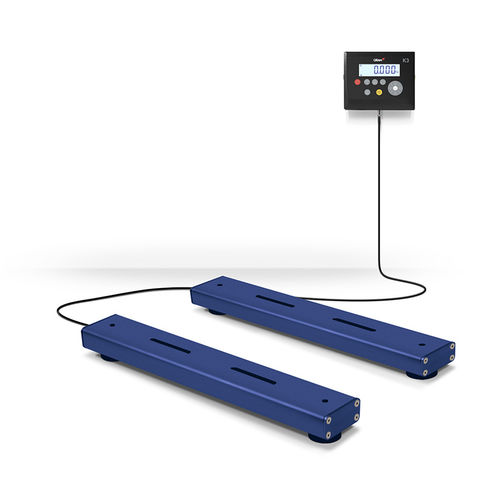

Electromechanical weighing bar K3 ZEBRA series kgglb
Add to favorites
Compare this product
Characteristics
- Type
- electromechanical
- Units of measurement
- kg, g, lb, oz
- Display
- with separate indicator, with LCD display
- Communication
- RS-232, wireless
- Power supply
- 230 V
- Material
- stainless steel, steel
- Protection level
- IP67
- Applications
- industrial, for tank
- Configuration
- floor
- Other characteristics
- battery-powered
- Weight range
600 kg, 1,500 kg, 3,000 kg
(1,322.8 lb, 3,306.9 lb, 6,613.9 lb)- Resolution
200 g, 500 g, 1,000 g
(7.05 oz, 17.64 oz, 35.27 oz)- Weighing plate length
800 mm, 1,200 mm
(31.5 in, 47.2 in)- Weighing plate width
130 mm, 150 mm
(5.1 in, 5.9 in)- Operating temperature
Min.: 5 °C
(41 °F)Max.: 35 °C
(95 °F)- Height
115 mm
(4.5 in)
Description
• Perfect to weigh rigid structures: beams, tanks, cages…
• Epoxy painted steel structure
• Easy installation under any structure
• Lifting handles in every bar to make the maintenance easier
• Wire length: 4 metres between the bars
• Connection to GRAM indicators
• Functions
• 4 auto-hold levels to weigh large objects
• RS-232 output to connect our printers, remote displays or a PC
• Check function with visual and sound indication
• 100 products memory for piece-counting function
• 20 digital tares memory
• Last weight memorization and programmable auto-off
Robust and adapted to any type of weighing
Suitable to weigh rigid objects such as bins, containers, boxes, beams, tanks, animal cages…
Steel version
Epoxy painted steel structure with an ABS indicator
K3 indicator included
Brightly backlighted LCD screen with an intuitive use keyboard
RS-232 data output
Compatible with our printers, remote displays and a PC
