Digital scale XTREM Penguin serieslow-profile platformelectronickg
Add to favorites
Compare this product
Characteristics
- Type
- low-profile platform, electronic
- Units of measurement
- kg, lb, g, oz
- Display
- with separate indicator, digital
- Communication
- WiFi
- Power supply
- 230 V
- Material
- steel
- Protection level
- IP68
- Applications
- industrial, for heavy loads, for pallet trucks
- Configuration
- floor
- Other characteristics
- four-cell
- Weight range
1,500 kg, 3,000 kg
(3,306.9 lb, 6,613.9 lb)- Resolution
500 g, 1,000 g
(17.64 oz, 35.27 oz)- Weighing plate length
1,200 mm, 1,500 mm, 1,600 mm
(47.2 in, 59.1 in, 63 in)- Weighing plate width
900 mm, 1,200 mm, 1,500 mm
(35.4 in, 47.2 in, 59.1 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)- Height
108 mm
(4.3 in)- Weight
159 kg, 165 kg, 221 kg
(350.53 lb, 363.76 lb, 487.22 lb)
Description
• Very low height platform (50 mm) with fully digital Xtrem weighing core.
• Wide access ramp for loads without special handling, and optional exit ramp.
• EP model suitable for Euro-pallet weighing with hand truck.

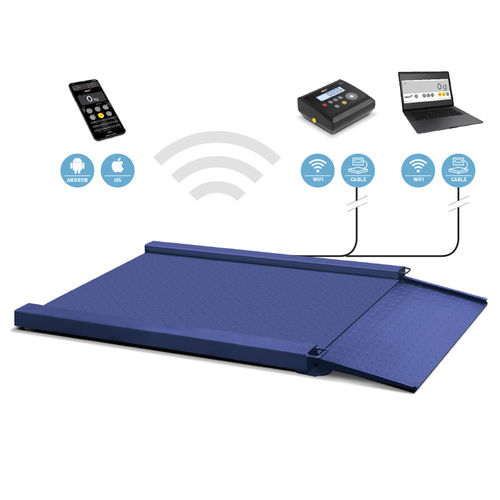

• Fully autonomous, data sent to an indicator, PC, tablet or iOS or Android smartphone*.
• Maximum safety: important adjustment and calibration data incorporated in the platform.
• Connects to WiFi network* and sends the data to any equipment connected to the IP network.
• Total flexibility: Sends the data via cable and WiFi.
Special model for Europallets
Our EP model is especially suitable for weighing Euro pallets, with space for the pallet and the manual hoist.
Minimal effort
With a height of only 50 mm and its wide ramps, it is easy to load pallets without the need for manoeuvring the load for stowing it.
Xtrem Technology
Xtrem module with built-in digital weighing technology
