Platform scale XTREM-X series
kgglb

Platform scale - XTREM-X series - Gram Group - kg / g / lb
Platform scale - XTREM-X series - Gram Group - kg / g / lb
Platform scale - XTREM-X series - Gram Group - kg / g / lb - image - 2
Platform scale - XTREM-X series - Gram Group - kg / g / lb - image - 3
Platform scale - XTREM-X series - Gram Group - kg / g / lb - image - 4
Platform scale - XTREM-X series - Gram Group - kg / g / lb - image - 5
Platform scale - XTREM-X series - Gram Group - kg / g / lb - image - 6
Add to favorites
Compare this product

Go to the Gram Group website for more information

Characteristics

Type
platform
Units of measurement
kg, g, lb, oz
Calibration
external
Display
digital
Communication
RS-232, WiFi
Power supply
230 V
Material
stainless steel
Protection level
IP67
Applications
industrial
Configuration
floor
Other characteristics
precision, hygienic
Weight range

Min.: 6 kg
(13.2 lb)

Max.: 600 kg
(1,322.8 lb)

Resolution

Min.: 1 g
(0.04 oz)

Max.: 100 g
(3.53 oz)

Weighing plate length

300 mm, 400 mm, 500 mm, 650 mm, 800 mm
(11.8 in, 15.7 in, 19.7 in, 25.6 in, 31.5 in)

Weighing plate width

240 mm, 300 mm, 400 mm, 500 mm, 600 mm
(9.4 in, 11.8 in, 15.7 in, 19.7 in, 23.6 in)

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 40 °C
(104 °F)

Weight

4.2 kg, 5.5 kg, 10.3 kg, 20.5 kg, 31.5 kg
(9.26 lb, 12.13 lb, 22.71 lb, 45.19 lb, 69.45 lb)

Description

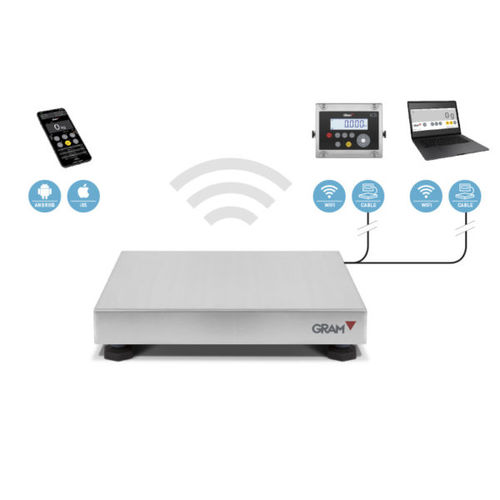

• Hygienic weighing platform with fully digital Xtrem weighing core. • Made entirely with stainless steel AISI 304. • Fully autonomous, data sent to an indicator, PC, tablet or iOS or Android smartphone*. • Multi-indicator: The platform connects to any indicator or PC connected to the network. • Maximum safety: important adjustment and calibration data incorporated in the platform. • Connects to WiFi network*, with the data sent to any equipment connected to it or to any other IP network. • Total flexibility: Compatible with indicators connected by digital cable or WiFi**. • Multipurpose: Attachment for indicators in multiple positions. New models with stainless steel sensor Stainless steel sensor with IP69K protection on models X3S, X3S6, X4S. Models X2S and X2S6 have IP67 protection. Adaptable Five sizes of low-profile weighing platform. Protected Designed for hard intensive use and protected against liquid agents and dust. The entire surface is smooth with gentle edges for an easy cleaning.
