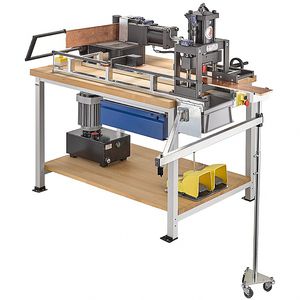

Punching busbar fabrication machine CM1-200

bendingcuttingfixed

CM1-200 CUTTING/PUNCHING/BENDING MACHINE FOR COPPER BUSBARS UP TO 200MM Three in one busbar fabrication system to cut/punch/bend copper bars CUTTING Die and blade for cutting rigid bars of, up to 200X10 mm. Die and blade for cutting flexible busbars of, up to 200X10 mm. PUNCHING For flexible and rigid bars of up to 10 mm thick. Punches with centring pin Standard dimensions : Diameter 5-6-7-8-9-10-11-12-13-14-15-16 Oblongs 5-6-7-8-9-10-11-12-13 X 16 mm BENDING For rigid bars of up to 125X10 mm. Accurate folding angle adjustement by reading from the ruler and centring pin integrated into the folding V-die. - Power : 12 metric tons - Max. pressure : 160 bar - Power Pack CME 240V, single phase motor 1.1KW - Head weight : 160 KG - WxHxT : 475x260x650 mm
