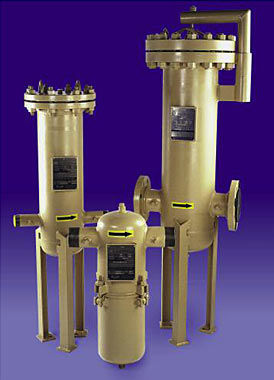

Gas filter AGS™ series
compressed aircartridgecoalescing

Gas filter - AGS™ series - Graver Technologies - compressed air / cartridge / coalescing
Gas filter - AGS™ series - Graver Technologies - compressed air / cartridge / coalescing
Add to favorites
Compare this product


Characteristics

Designed for
gas, compressed air
Filtration element
cartridge
Filtration method
coalescing
Applications
industrial
Material
stainless steel
Other characteristics
low pressure, high-temperature
Operating pressure

Min.: 180 psi

Max.: 1,440 psi

Fluid temperature

200 °F
(93.3 °C)

Description

The AGS Series coalescing filters effectively separate oil, water, and other liquid aerosols from compressed air and gas lines. features & benefits: ASME Code design and constructed High flow rate capability Low pressure drop & long element life High temperature capability Economical replaceable cartridges Modified and custom designs available Design pressures from 180 psi to 1440 psi Contact Factory for higher pressure applications
