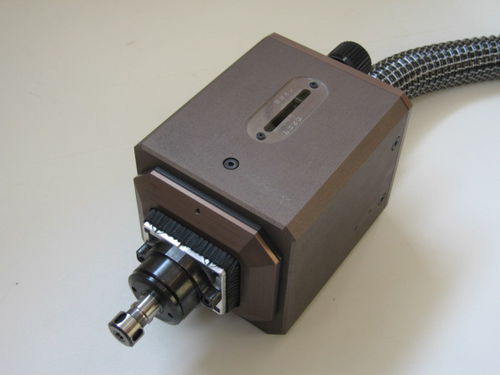

AC motor spindle unit ESP

engraflexx ESP Standard Spindle unit with laterally deflecting electro-spindle and infinitely adjustable revolution speed. For the use with robot systems or in special plants where dimensional or positional differences have to be automatically compensated. Tool specifications: Integrated lateral spindle deflection function up to max. 10 mm deflection pressure force remains unchanged even with larger spindle deflection uniform material abrasion regardless dimensional differences on workpieces Lateral spindle deflection force manual adjustment via adjustment button infinitely from 3 to 60 N value preset readable on engraved scale Option: automatic adjustment via pneumatic unit Air-cooled high frequency spindle motor power consumption 350W revolution speed infinitely adjustable (1’000-24’000 rpm) via frequency converter control via analog signal of the system control collet chuck holder for cutting tools standard diameter 6 mm (max. 7 mm) other diameters, i.e. special tool holders on request Weight of the complete spindle unit: 4.8 kg Scope of delivery: Spindle unit complete in solid aluminium cabinet Connection unit consisting of fresh air hose for motor cooling connection cable for motor drive and safety switch Control unit in control cabinet frequency converter control for spindle drive 20-pin interface plug for robot control switch for manual spindle start Options: automatically selectable adjustment of the lateral deflection force automatically selectable blocking of the deflection function for one deflection axis for both deflection axes automatic tool changer
